Some things to note:

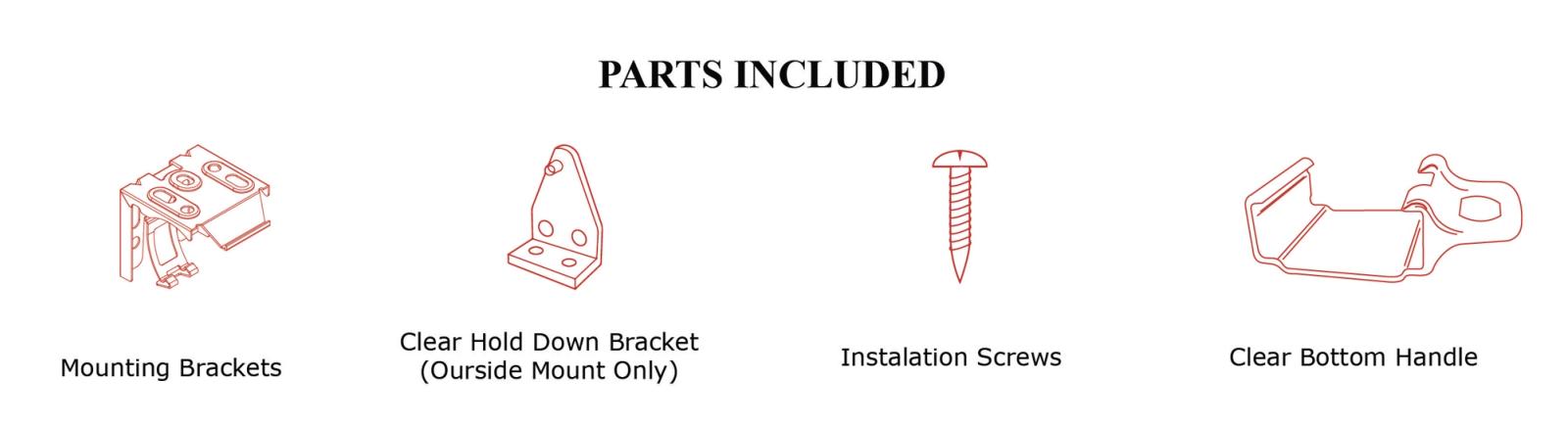

- 1. Please check that all parts have been supplied before you begin to assemble your blind
- 2. Ensure that the blind is mounted level for correct operation.
1. Position your blind
As per your order, determine the correct fitting location.

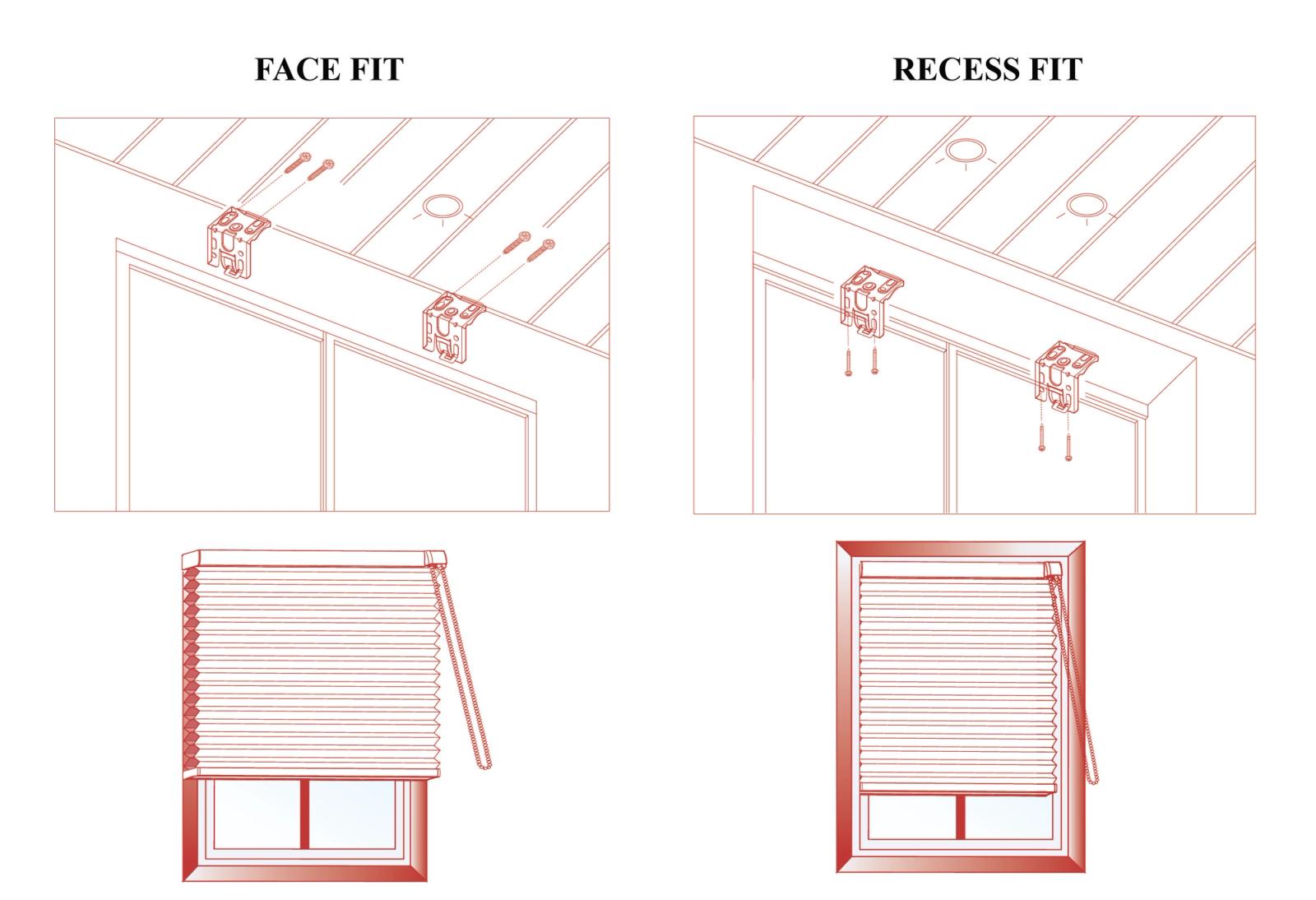

Cellular blind brackets can be mounted directly into the top of the window recess or ceiling, or directly onto the face of the wall.
Position the end brackets for fixing (either face or top) ensuring that the brackets are approximately 50mm from each end of the blind.
The centre bracket (required for blinds exceeding 1200mm width) may be positioned as required.
Mount the bracket using the provided screws using pre-drilled holes if required.

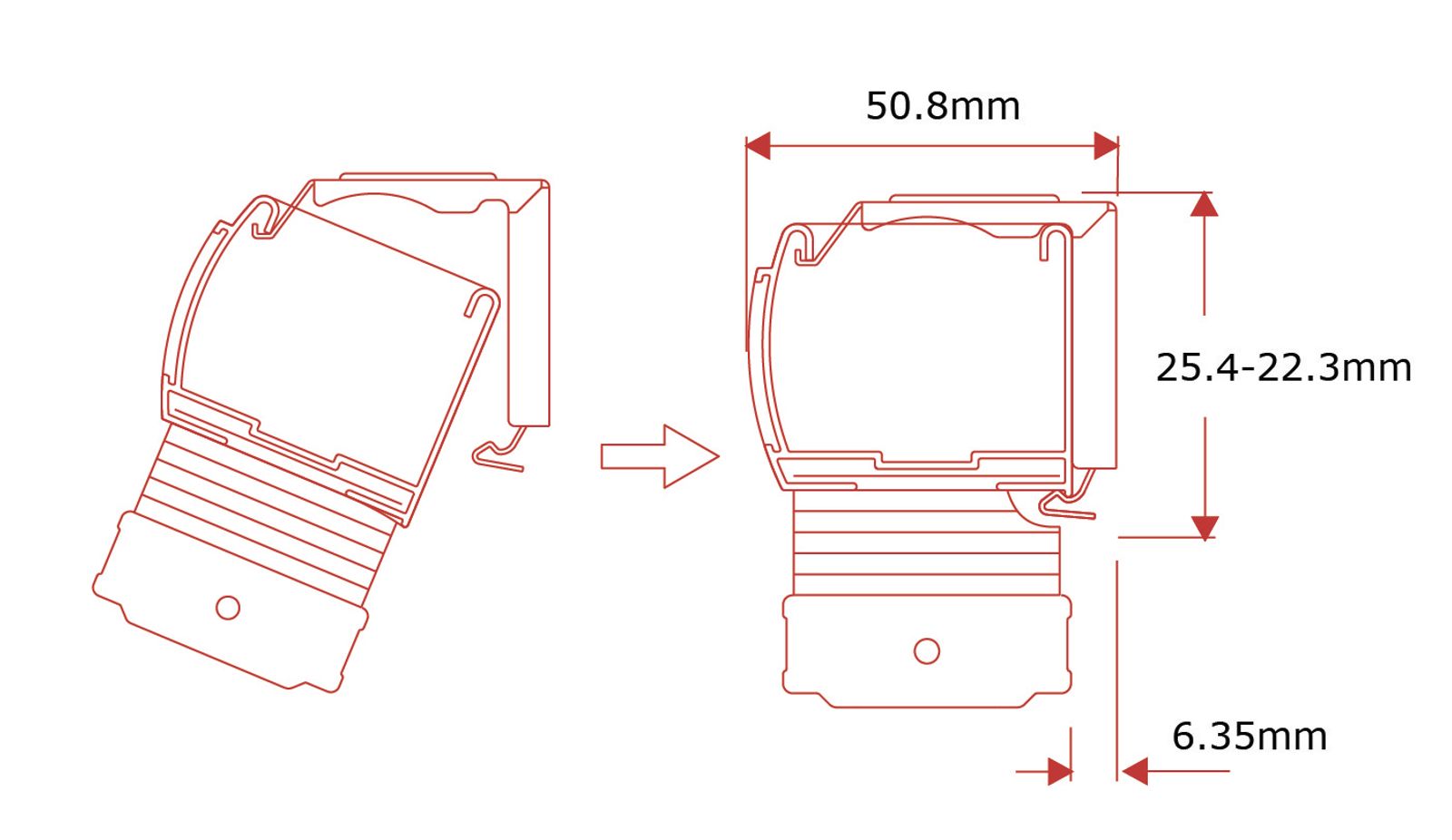

2. Attach headrail to the installation brackets
Position the front edge of the track into the front hooks of the installation bracket, and gently push towards the window and then upward so the track will “snap” into position.

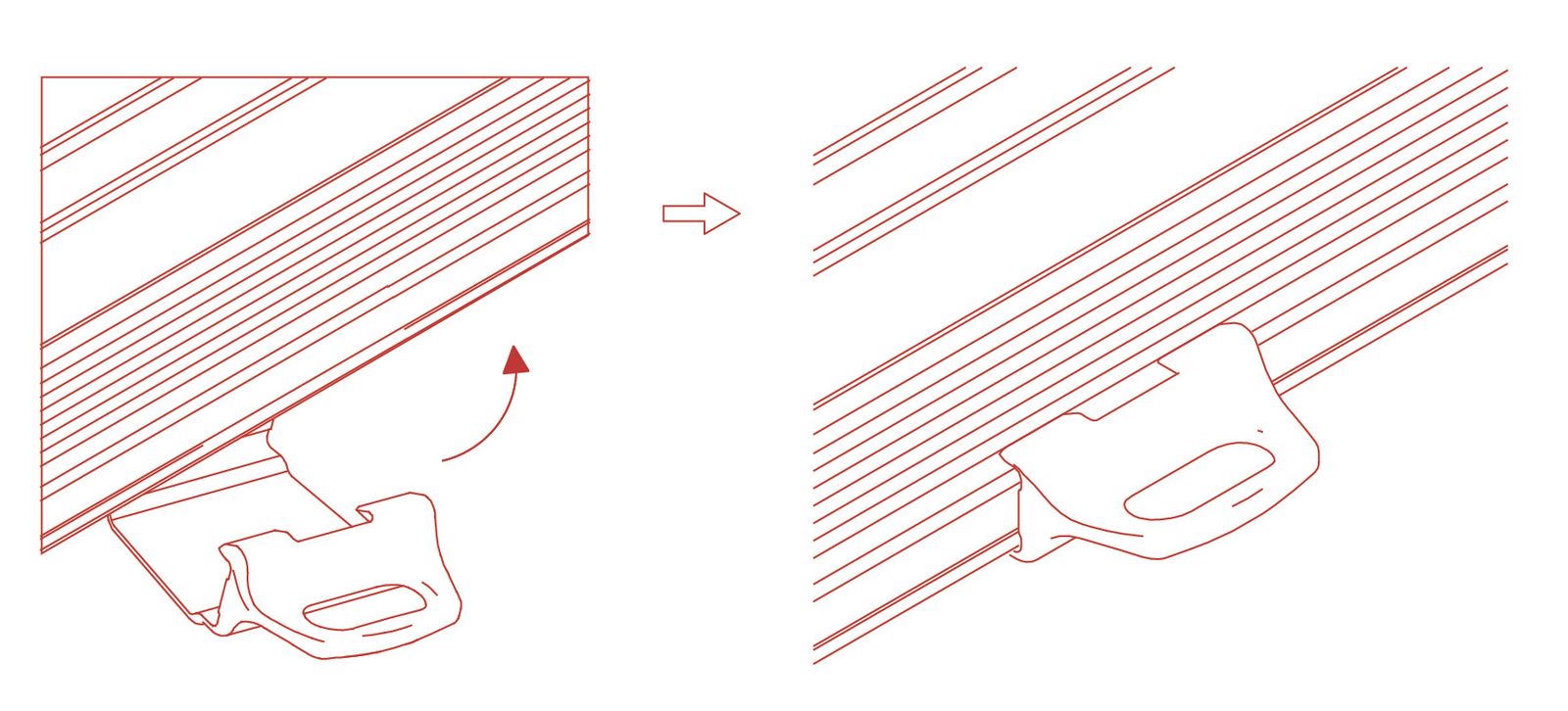

4. Attach bottom handle
To Operate The Blind
Raising: Push the bottom handle upward until the blind reaches the desired height.
Lowering: Pull the bottom handle downward until the blind reaches the desire height.
Please allow 24 hours for your shade to drop to its actual height when first installed due to the nature of the fabric.

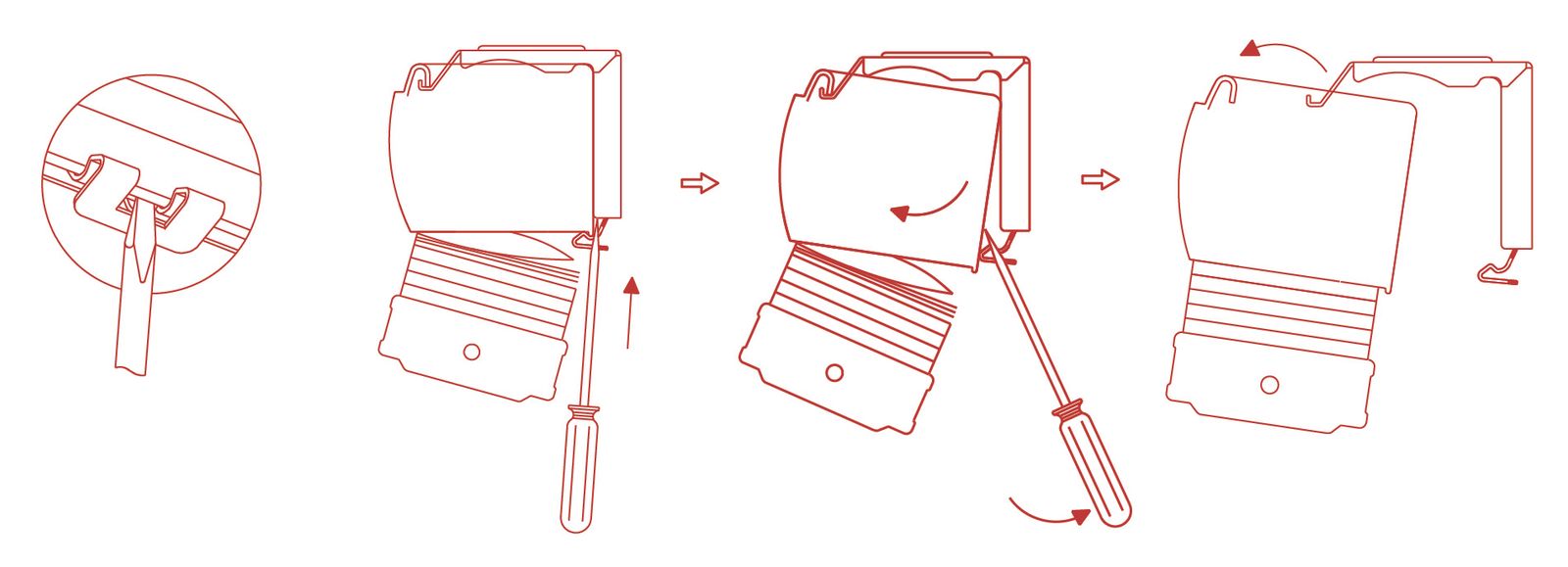

How to remove headrail
