Some things to note:

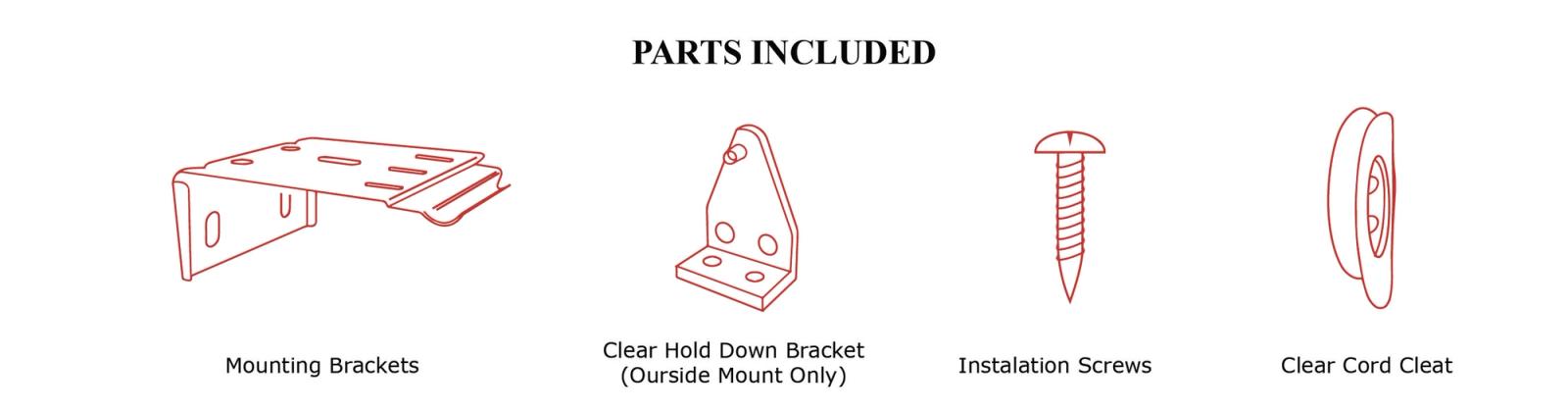

- 1. Please check that all parts have been supplied before you begin to assemble your blind
- 2. Ensure that the blind is mounted level for correct operation.
1. Position your blind
As per your order, determine the correct fitting location.

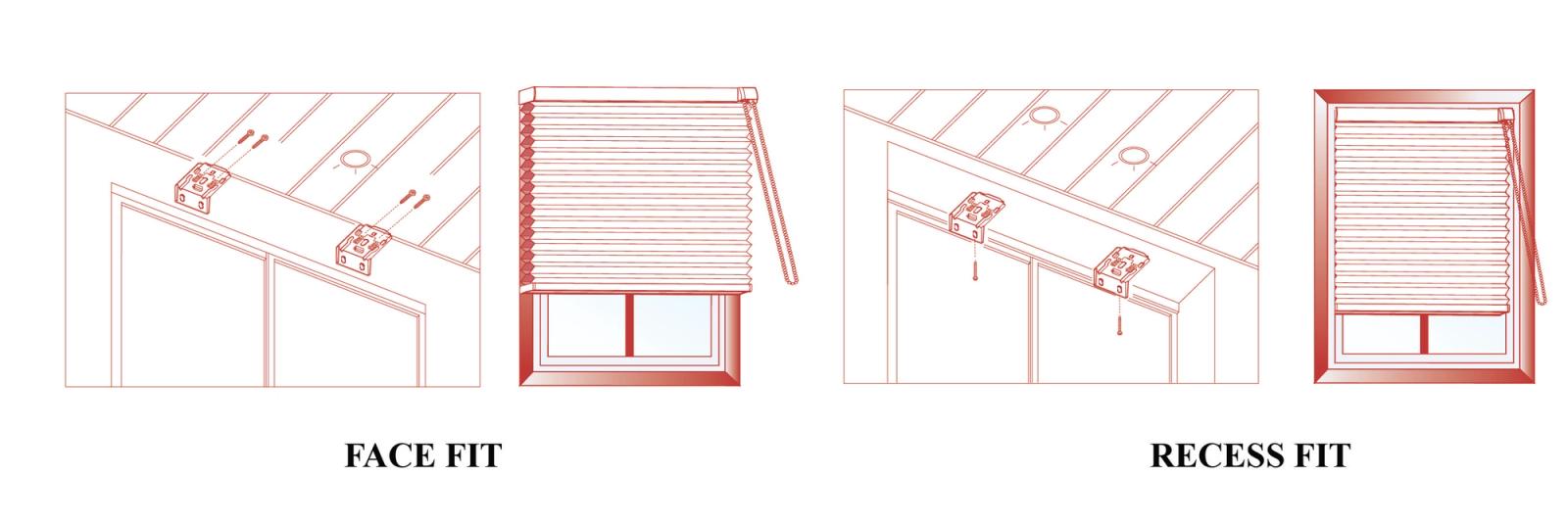

Cellular blind brackets can be mounted directly into the top of the window recess or ceiling, or directly onto the face of the wall.
Position the end brackets for fixing (either face or top) ensuring that the brackets are approximately 50mm from each end of the blind.
The centre bracket (required for blinds exceeding 1200mm width) may be positioned as required.
Mount the bracket using the provided screws using pre-drilled holes if required.

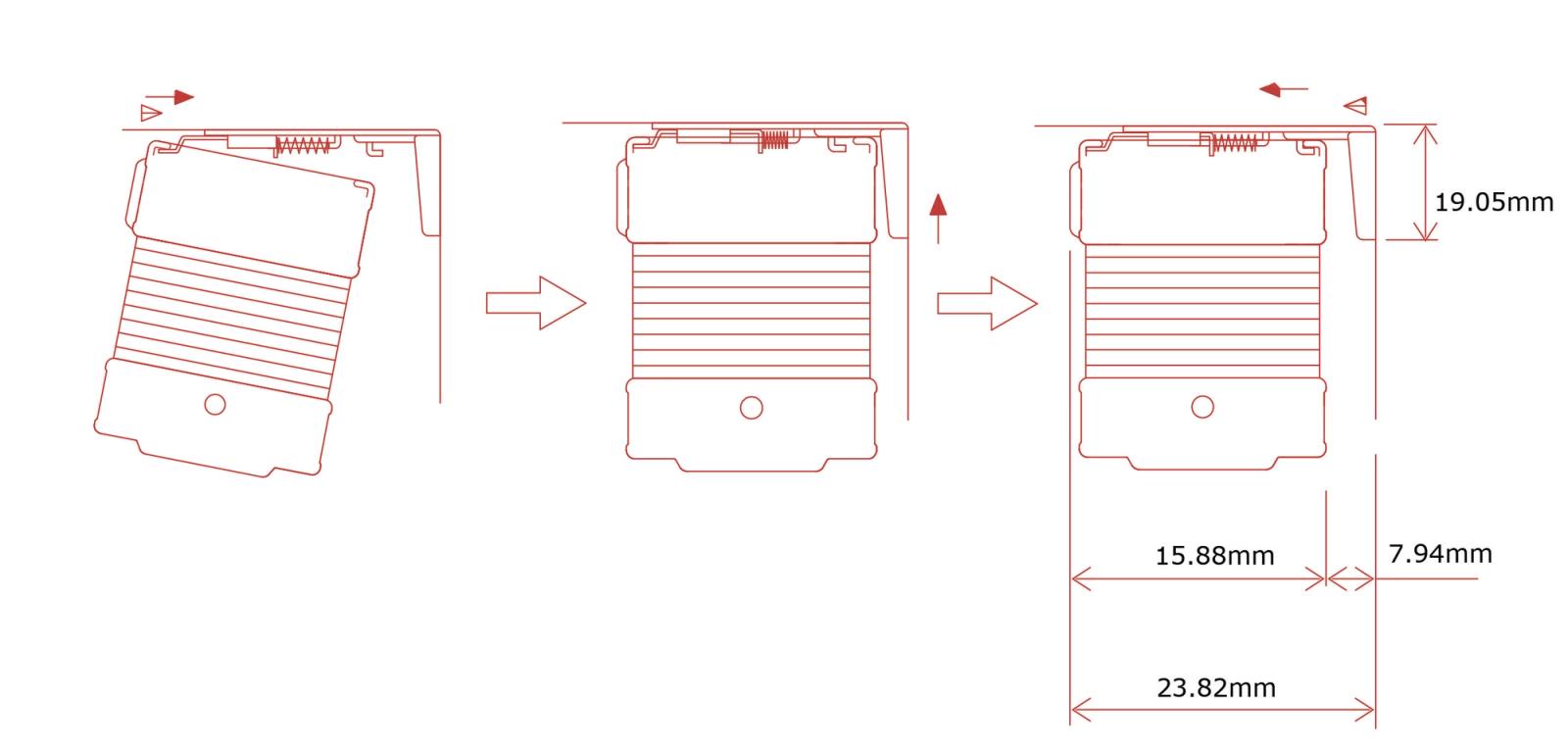

2. Attach headrail to the installation brackets
Position the front edge of the track into the front hooks of the installation bracket, and gently push towards the window and then upward so the track will “snap” into position.
3. Install Cord Cleat

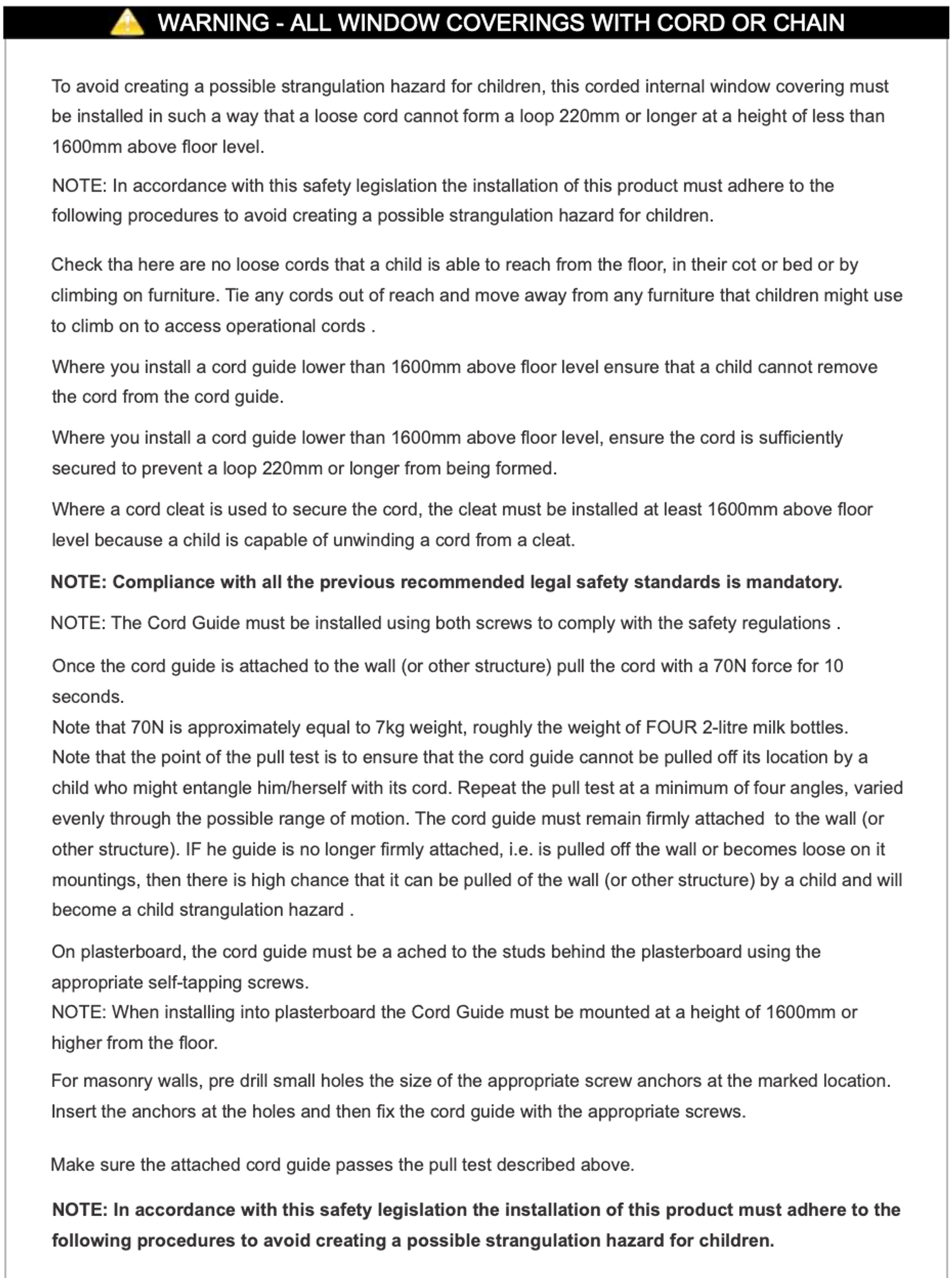

Cord cleats must be installed to comply with Child Safety Regulations. The cleats must be installed at least 1600mm above floor level because a child is capable of unwinding a cord from a cleat.
Fasten the cleats to the wall using the screws provided. Do not use tape or glue to attach the cleats.

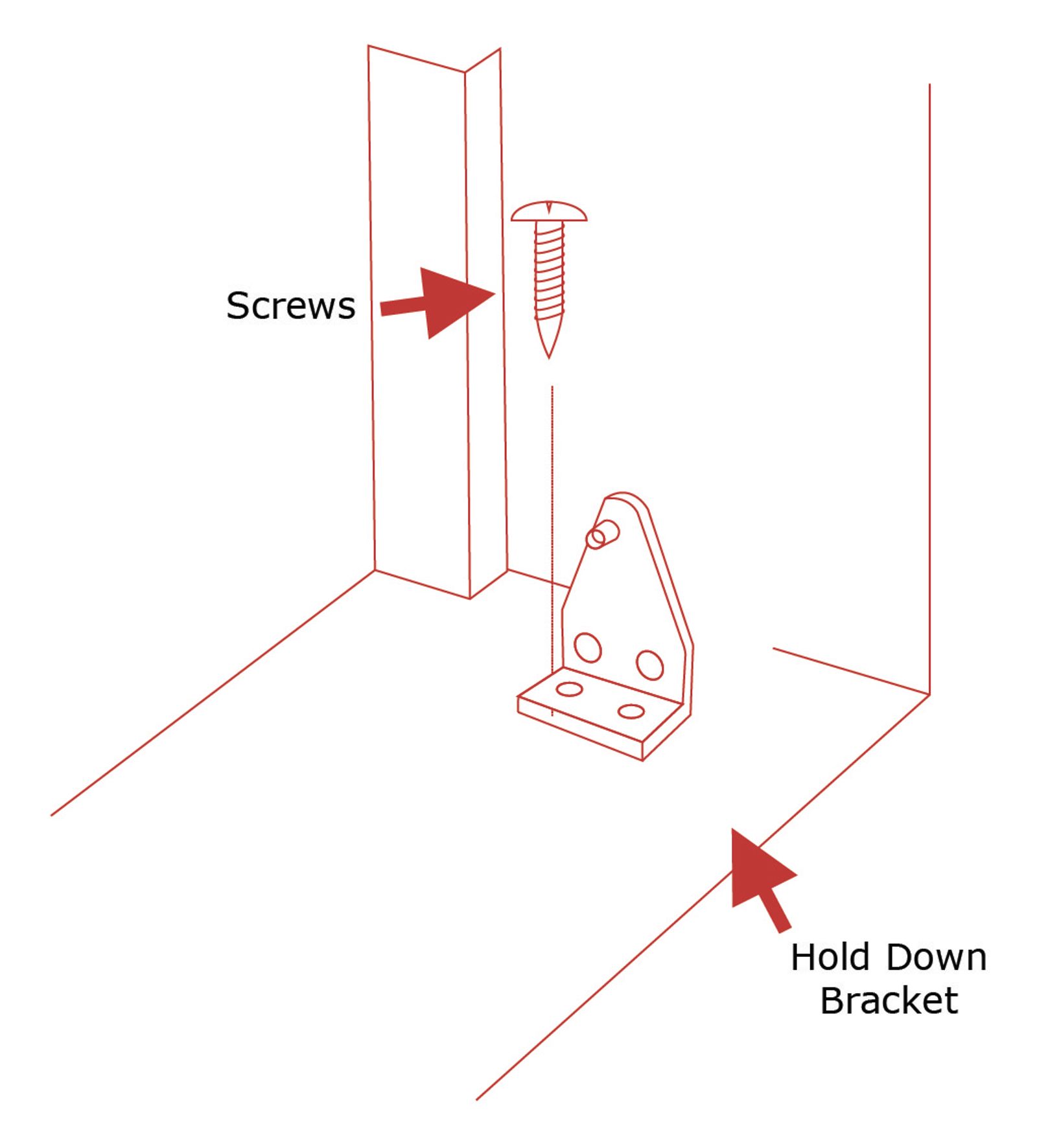

4. Install Hold Down Bracket (outside mount)
The use of hold-down brackets is recommended for additional child safety but is not a requirement for the normal functioning of the blind.
Using the screws, attach the base of the hold-down bracket to the window facing or sill. Additional fixing can also be fitted through the side of the bracket (where suitable).
Snap pin-on end caps into the holes in the hold-down brackets.
To Operate The Blind
Raising: Pull the cord downward until the blind reaches the desired height; release the cord, and the blind will lock automatically.
Lowering: Hold the cord at eye level and move it to the left, pulling down gently until the cord lock releases. Allow the cord to pass through until the blind reaches the desired level. Move the cord to the right and release, and the blind will lock automatically.
Please allow 24 hours for your shade to drop to its actual height when first installed due to the nature of the fabric.
